Validation Testers

SMP

Signal Multiplexing and Handling Platform

Purpose
  • Multiplexing various instruments
  • FCT
  • Product/Design validations
Special features
  • Working from 24V supply voltage
  • Modbus over Ethernet controlable
  • Up to 15 cards per box
  • Many predesigned components for measurement and signal handling purposes
  • Low frequency multiplexer (max 1kHz, 1.7A, 60V, 1:64, 2x 1:30, 4x 1:15)
  • RLC Meter (4 wire) multiplexer (1:4)
  • PSU multiplexer (4x 1:6, 250mA, 175V)
  • High frequency multiplexer (max. 450MHz, 2x 1:4 or 1:8)
  • Fully customisable cards for special purposes
DUTs
  • Electrical connection points (custom fixture or harness needed)
Multiplexable Instruments
  • Power supplies
  • Multimeters
  • Signal generators
  • RLC meters
  • Custom sources and instruments
Size
  • 4U
  • fits into the 19" rack system
Interfaces
  • Between measurement control system and Signal Multiplexer Platform:
    • Modbus over Ethernet
  • Between DUT signals and Signal Multiplexer Platform:
    • Fixture and harness
    • Connectors and harness
  • Between Instruments and Signal Multiplexer Platform:
    • Connectors and harness
Others:

CE compliant

Price:

from: 1600EUR

Auxiliary Info

SMP-Box
  • Mechanical box and internal backplane connection for cards
SMP-Control-Card
  • Protocol conversion (Modbus over Ethernet to Internal protokol)
  • Power management of the platform
SMP-LowFrequency-Mux
  • Low frequency multiplexer (bandwidth: DC to 1kHz)
  • SSR and REED relay version available
  • Configuration 1:64, 2x 1:30, 4x 1:15 (configure by jumpers)
  • Maximum switching current 200mA
  • Maximum switching voltage 20V
  • Contact resistance max. 200mR

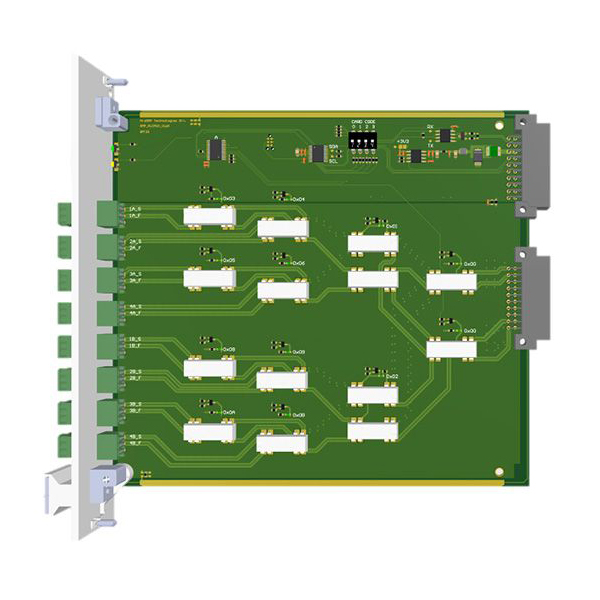

SMP-RLC-Multiplexer
  • RLC Meter (4 wire) multiplexer
  • Configuration 1:4
SMP-PSU-Multiplexer
  • Power supply multiplexer
  • Configuration 4x 1:6 (compatible with sensed power supplies)
  • Max switching current 250mA
  • Max switching voltage 175VDC
  • Contact resistance 200mR
 SMP PSU Multiplexer
SMP-HighFrequency-Multiplexer
  • Impedance controlled high frequency multiplexing
  • Bandwidth: 450MHz (including DC)
  • Insertion loss at 450MHz:  0.3dB
  • Configuration 2x 1:4 or 1x 1:8
  • Available with SMB or MCX connectors
 SMP Backplane Tester
SMP-Backplane-SingleBoard
  • Can control one card standalone (without box and control card)
  • Recommended for single card designs
 SMP Backplane SingleBoard
